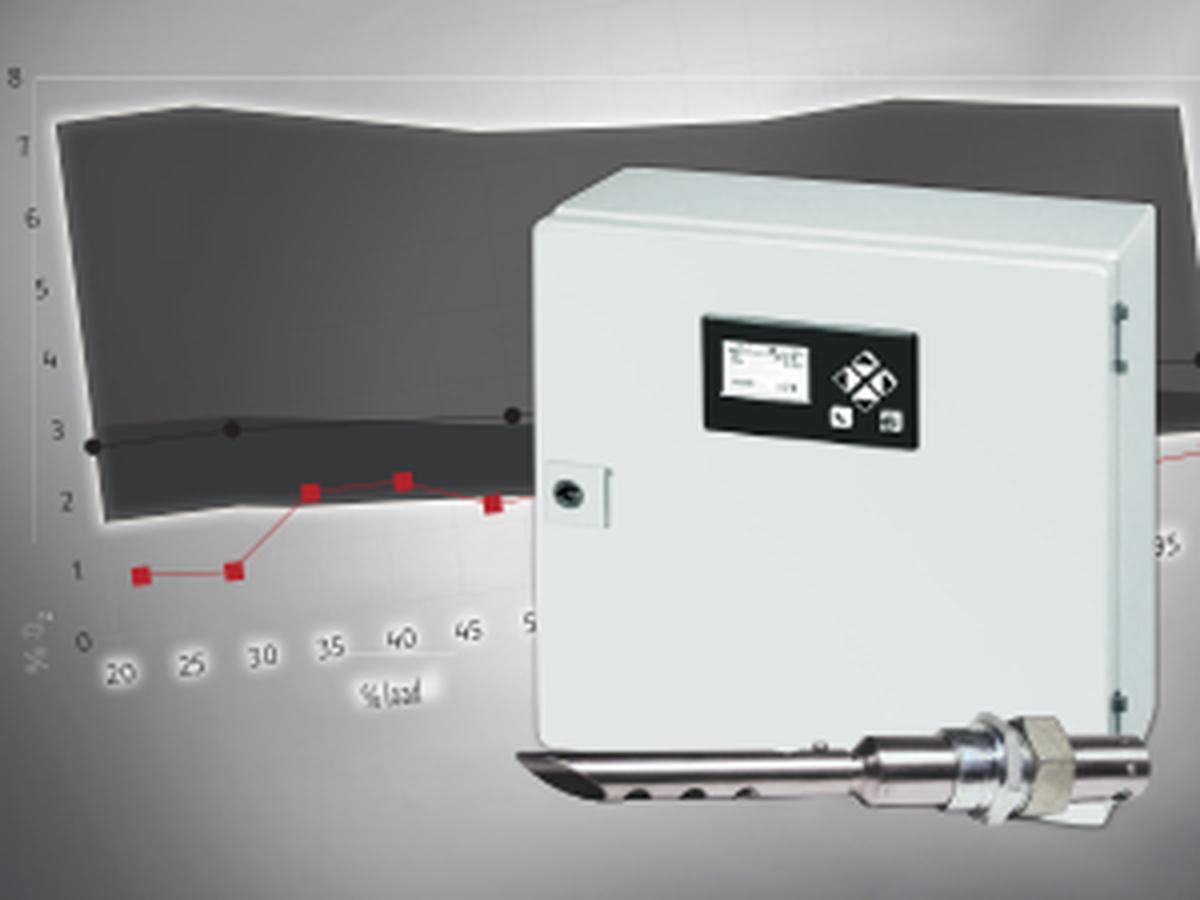

The failsafe CO/O2 control is based on the usage of either:

  • Two probes for measuring O2 (LS1 or LS2) and to detect COe (KS1), or
  • A twin probe for the simultaneous measurement/detection of O2/CO(KS1D),


Combined with the corresponding sensor electronics. The sensor electronic Lambda-Transmitter (LT) is connected to LAMTEC burner- and fuel/air ratio control with integrated CO/O2 control via Lamtec System Bus (LSB).

The technical data of the O2/CO control is dependent on the system used:

Sensor electronic with sensor Burner management system with integrated CO/O2 control SIL Reference or Link
- Please log in to view the documents -


LT1 with LS1 & LT2 with KS1

BurnerTronic, ETAMATIC, FMS, VMS

-

Integrated CO/O2 Control for VMS, FMS, ETAMATIC / ETAMATIC OEM and LT3-F - Commissioning Supplement

LT2 with LS2 & LT2 with KS1

BurnerTronic, ETAMATIC, FMS, VMS

-

Integrated CO/O2 Control for VMS, FMS, ETAMATIC / ETAMATIC OEM and LT3-F - Commissioning Supplement

LT3-F with KS1D

BurnerTronic, ETAMATIC, FMS, VMS

SIL2

Integrated CO/O2 control for BT300 and LT3-F - Commissioning supplement
Integrated CO/O2 Control for VMS, FMS, ETAMATIC / ETAMATIC OEM and LT3-F - Commissioning Supplement
CO/O2 control / LT3-F - System overview
LAMTEC Innovation - Sensor System Lambda Transmitter LT3-F Combination Probe KS1D
